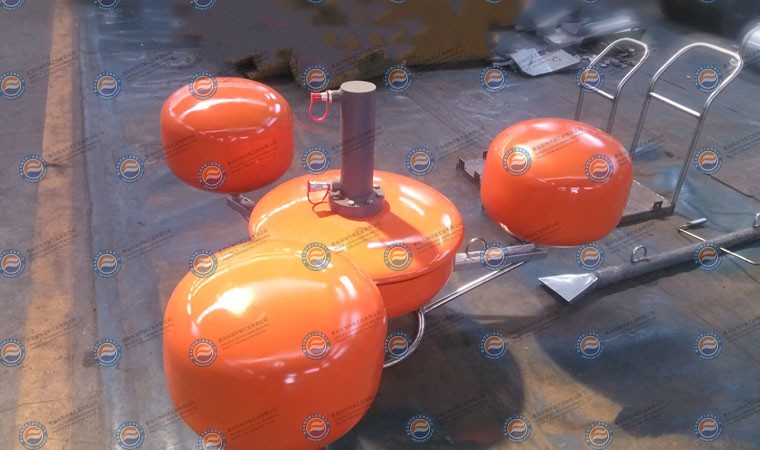

The WEIR OIL SKIMMER is one of the oil spill recovery devices developed and manufactured by our company, which is used together with our oil boom. It is composed of a skimmer and a power station.
The diesel power station with a hydraulic oil pump and an oil delivery pump driven by a diesel engine or a motor converts the diesel power into the hydraulic power with a stepless speed regulation to drive the weir skimmer’s regulating weir which floats on the water surface to move up and down. Properly adjust the weir’s position to make the top of the weir staying on the interface between oil and water.?
The weir skimmer can be widely used on harbors, oil ports, wharfs, rivers, lakes. Shipyards, ship-breaking yards, petroleum and chemical industries, power plants, wastewater treatment plants and other site where there are oil spills to be recovered.
This skimmer is suitable for recovery of oil spills with low and medium viscosity. It can be used with our containment booms, for both containing and collecting oil at the same time, so as to prevent the waters from being contaminated.?
|
Model ? ? ? ? ? ? ? ? Parameter ? ? ? ? ? ? ? ? |
SY-10 ? ? ? ? ? ? ? ? |
SY-20 ? ? ? ? ? ? ? ? |
SY-30 ? ? ? ? ? ? ? ? |
SY-50 ? ? ? ? ? ? ? ? |
SY-100 ? ? ? ? ? ? ? ? |
Max. Recovery Rate，m3/h ? ? ? ? ? ? ? ? |
10 ? ? ? ? ? ? ? ? |
20 ? ? ? ? ? ? ? ? |
30 ? ? ? ? ? ? ? ? |
50 ? ? ? ? ? ? ? ? |
100 ? ? ? ? ? ? ? ? |
|
Underwater Depth of ? ? ? ? ? ? ? ? Overflow Weir,?mm ? ? ? ? ? ? ? ? |
10～50 ? ? ? ? ? ? ? ? |
10～50 ? ? ? ? ? ? ? ? |
10～50 ? ? ? ? ? ? ? ? |
10～50 ? ? ? ? ? ? ? ? |
10～50 ? ? ? ? ? ? ? ? |
|
KW?Driving Power (Diesel Engine ? ? ? ? ? ? ? ? or Explosion-proof Motor) ? ? ? ? ? ? ? ? |
6.3/4 ? ? ? ? ? ? ? ? |
6.3/7.5 ? ? ? ? ? ? ? ? |
14.5/11 ? ? ? ? ? ? ? ? |
14.5/11 ? ? ? ? ? ? ? ? |
32/18.5 ? ? ? ? ? ? ? ? |
|
Suction Head of ? ? ? ? ? ? ? ? Oil Recovery Pump，m ? ? ? ? ? ? ? ? |
6 ? ? ? ? ? ? ? ? |
6 ? ? ? ? ? ? ? ? |
8 ? ? ? ? ? ? ? ? |
8 ? ? ? ? ? ? ? ? |
8 ? ? ? ? ? ? ? ? |
|
Operating Pressure of ? ? ? ? ? ? ? ? Hydraulic Cylinder，MPa ? ? ? ? ? ? ? ? |
5 ? ? ? ? ? ? ? ? |
5 ? ? ? ? ? ? ? ? |
5 ? ? ? ? ? ? ? ? |
5 ? ? ? ? ? ? ? ? |
5 ? ? ? ? ? ? ? ? |
